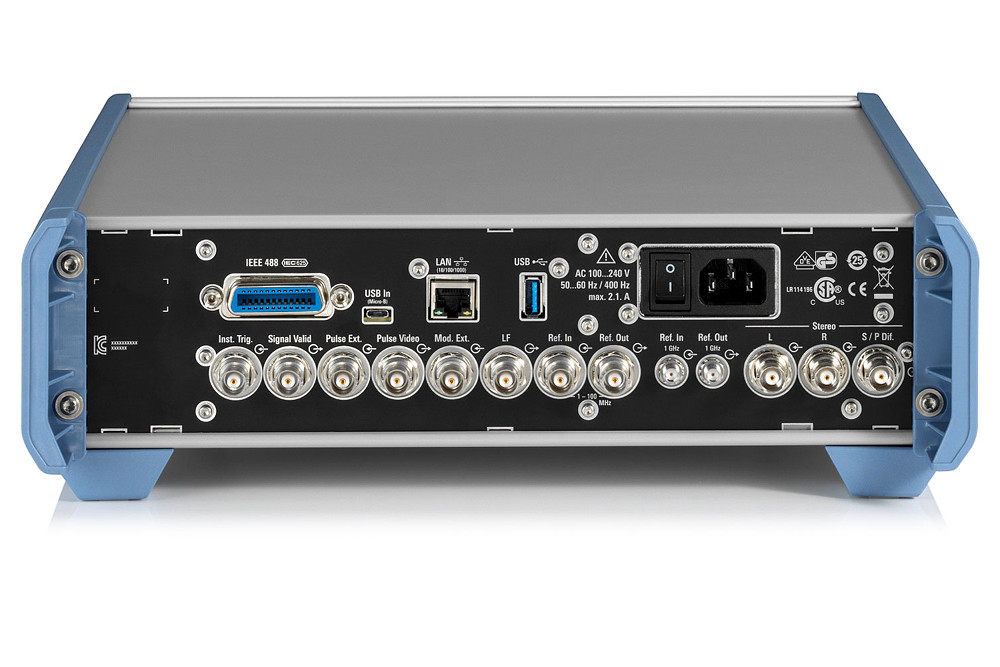

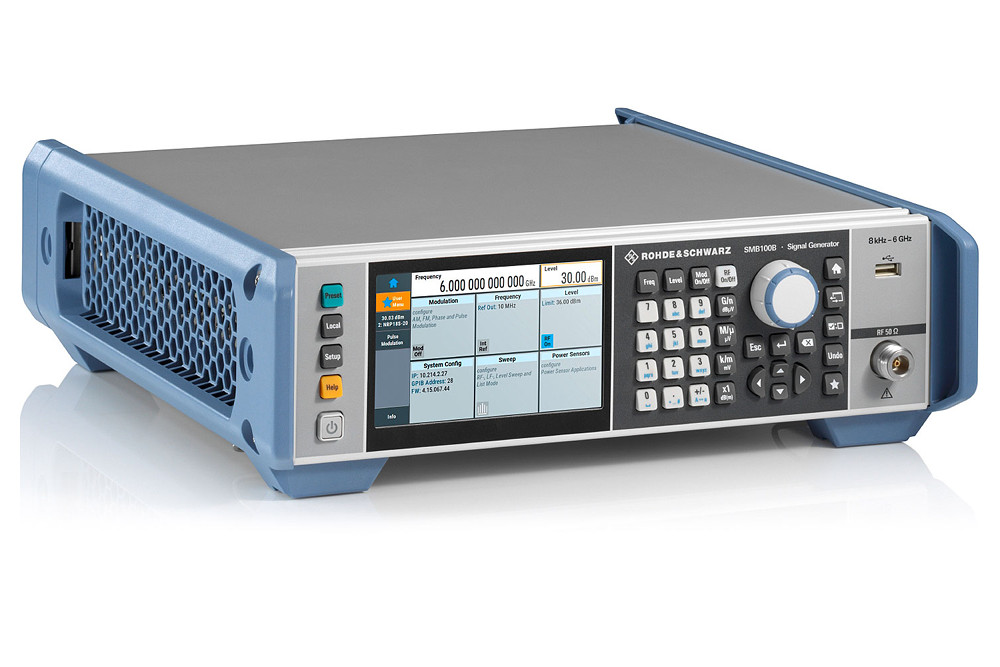

Rohde and Schwarz SMB100B

Compact RF Signal Generator with hardware and software options

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The SMB100B base unit is a compact, high performance signal generator base unit with hardware and software options

  • Frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz - hardware option specified at time of ordering
  • Outstanding single sideband (SSB) phase noise of < –134 dBc (measured) at 1 GHz and an offset of 20 kHz
  • Very low wideband noise of < –153 dBc (typ.) at 15 MHz < f ≤ 6 GHz and an offset of 30 MHz
  • Ultra high output power of 34 dBm (measured) at 1 GHz
  • Compact form factor with 2 HU and ¾ 19" width

Please note that most hardware options are not customer fit units but can be retrofitted by R&S service. The frequency range options SMBB-B101, -B103 and -B106 are not installable post factory and must be specified at the time of ordering.

Product Variants

Model Price

SMB100B

Compact RF Signal Generator base unit
£1,582.95
Model Description Price
SMBB-B1
OCXO reference oscillator for SMB100B (hardware option)
£1,070.55
SMBB-B101
Frequency Range to 1GHz for SMB100B (hardware option)
£4,419.45
SMBB-B103
Frequency Range to 3GHz for SMB100B (hardware option)
£6,496.50
SMBB-B106
Frequency Range to 6GHz for SMB100B (hardware option)
£13,706.70
SMBB-B1H
OCXO high performance oscillator for SMB100B (hardware option)
£2,113.65
SMBB-B3
1 GHz Reference Input/Output for SMB100B (hardware option)
£576.45
SMBB-B32
Ultra High Output Power for SMB100B (hardware option) - requires SMBB-K31
£3,367.20
SMBB-B5
Stereo/RDS-Code for SMB100B (hardware option)
£4,090.05
SMBB-B86
Interface GPIB and USB for SMB100B (hardware option)
£384.30
SMBB-K22
Pulse Modulator for SMB100B (software option)
£576.45
SMBB-K23
Pulse Generator for SMB100B (software option)
£576.45
SMBB-K24
Multi Function Generator for SMB100B (software option)
£1,445.70
SMBB-K31
High Output Power for SMB100B (software option)
£1,912.35
SMBB-K704
Flexible Reference Input from 1MHz - 100MHz for SMB100B (software option)
£480.38
SMBB-K720
AM/FM/PhiM modulation for SMB100B (software option)
£576.45
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
