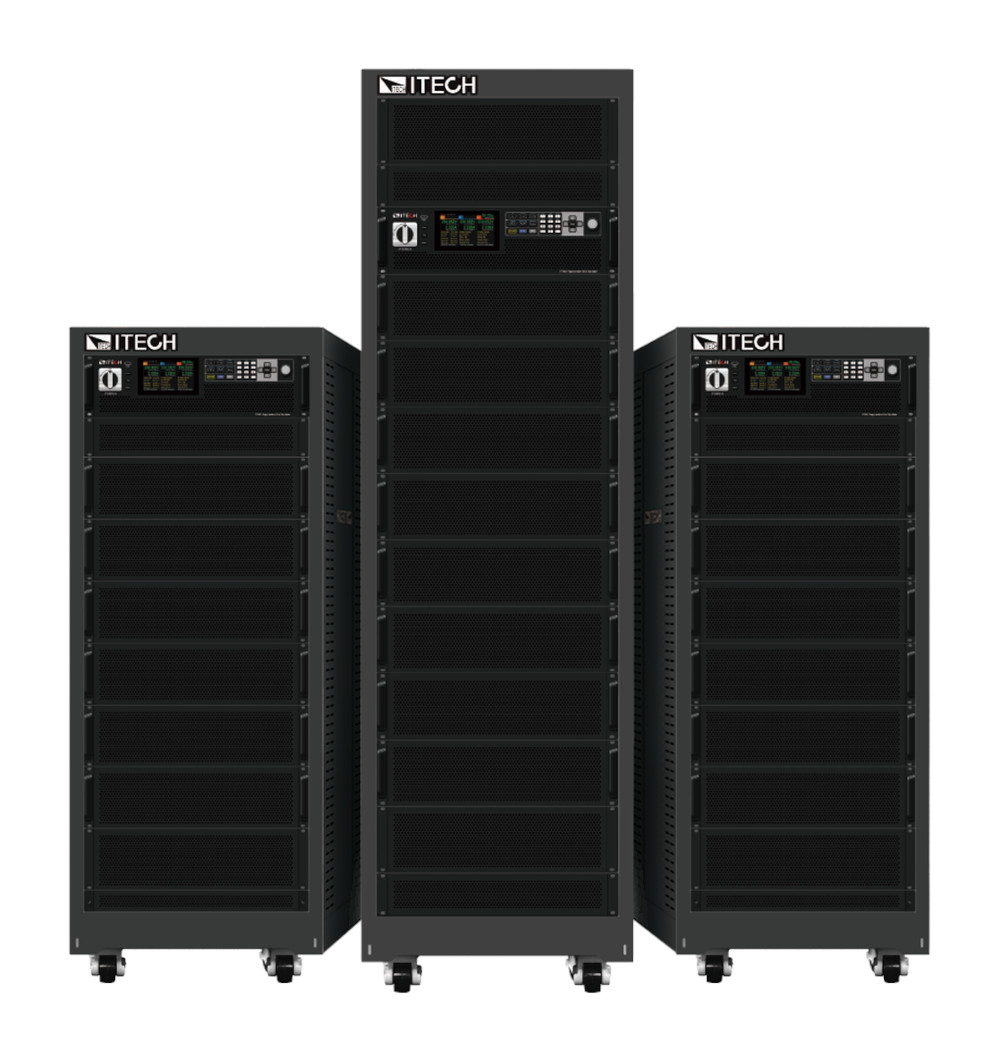

ITECH IT7800 Series

High power programmable AC/DC power supply with models from 3 to 165kVA, single or 3 phase

Images for illustrative purposes only. Please refer to product details. Click on the main image for a larger view and to see image descriptions.

The IT7800 series of programmable AC/DC power supplies from ITECH come with power ratings of up to 15kVA in a 3U chassis, and with voltage ranges up to 1050V L-N. They can be paralleled to increase the power output to 960kVA and incorporate a built-in power meter and arbitrary waveform generator.

  • Output frequency from 16 to 2400Hz, programmable slew rate setting for changing voltage and frequency
  • Built-in single/3-phase AC power meter
  • Multi-channel function, single unit can connect/test up to 3 DUTs (3-phase units only)
  • 4 output modes: AC/DC/AC+DC/DC+AC
  • Choose single phase, three-phase, reverse phase output mode, simulate 3-phase imbalance, 3-phase harmonics imbalance, 3-phase split phase test, reverse phase sequence tests (3 and 5kVA units only support single phase functions)
  • Harmonics measurement and analysis, up to 50th harmonic (voltage and current harmonic analysis, voltage harmonic simulation)
  • Intuitive touch screen interface
  • arbitrary waveform generation with built in waveforms and csv. file import
  • List mode automation
  • Input and output triggers - e.g., amplitude/frequency changes can trigger synchronous capture of the DUT current waveform
  • Output  start/stop phase angle can be set 0-360°
  • Surge/Sag function
  • Relay CTRL function, to cut the connection between instrument and DUT
  • Built-in USB/CAN/LAN/Digital IO interface, optional GPIB, Analogue & RS232 interfaces

Coming Soon:

  • Harmonics, inter-harmonics waveform synthesis according to IEC61000-4-13
  • Programmable output impedance according to IEC 61000-3-3
  • Professional software, set up programs complying with multinational security regulations and test conditions to complete civil aviation electronics and IEC related standards testing

Product Variants

Model Price

IT7803-350-30U

High power programmable AC/DC power supply 350V L-N, 30 A, 3kVA, 1Φ
POA

IT7805-350-30U

High power programmable AC/DC power supply 350V L-N, 30 A, 5kVA, 1Φ
POA

IT7806-350-90

High power programmable AC/DC power supply 350V L-N, 90 A, 6kVA, 1Φ or 3Φ
POA

IT7809-350-90

High power programmable AC/DC power supply 350V L-N, 90 A, 9kVA, 1Φ or 3Φ
POA

IT78105-350-630

High power programmable AC/DC power supply 350V L-N, 630 A, 105kVA, 1Φ or 3Φ
POA

IT7812-350-90

High power programmable AC/DC power supply 350V L-N, 90 A, 12kVA, 1Φ or 3Φ
POA

IT78120-350-720

High power programmable AC/DC power supply 350V L-N, 720 A, 120kVA, 1Φ or 3Φ
POA

IT78135-1050-90

High power programmable AC/DC power supply 1050V L-N, 90A, 135kVA, 3Φ
POA

IT78135-350-810

High power programmable AC/DC power supply 350V L-N, 810 A, 135kVA, 1Φ or 3Φ
POA

IT7815-350-90

High power programmable AC/DC power supply 350V L-N, 90 A, 15kVA, 1Φ or 3Φ
POA

IT78150-350-900

High power programmable AC/DC power supply 350V L-N, 900 A, 150kVA, 1Φ or 3Φ
POA

IT78165-350-990

High power programmable AC/DC power supply 350V L-N, 990 A, 165kVA, 1Φ or 3Φ
POA

IT78180-700-180

High power programmable AC/DC power supply 700V L-N, 180A, 180kVA, 3Φ
POA

IT78270-1050-180

High power programmable AC/DC power supply 1050V L-N, 180A, 270kVA, 3Φ
POA

IT78270-700-270

High power programmable AC/DC power supply 700V L-N, 270A, 270kVA, 3Φ
POA

IT7830-350-180

High power programmable AC/DC power supply 350V L-N, 180 A, 30kVA, 1Φ or 3Φ
POA

IT78360-700-360

High power programmable AC/DC power supply 700V L-N, 360A, 360kVA, 3Φ
POA

IT78405-1050-270

High power programmable AC/DC power supply 1050V L-N, 270A, 405kVA, 3Φ
POA

IT7845-350-270

High power programmable AC/DC power supply 350V L-N, 270 A, 45kVA, 1Φ or 3Φ
POA

IT78450-700-450

High power programmable AC/DC power supply 700V L-N, 450A, 450kVA, 3Φ
POA

Pages

Model Description Price
IT-E176
GPIB communication card for IT-M series POA
IT-E177
RS232 & Analogue communication card for IT-M series POA
No results found in this category. For some products this is because accessory list is too extensive and complex to list. Sometimes options are interdependent or mutually exclusive. Please refer to the datasheet or contact us if you can't find what you're looking for.
Embedded thumbnail for ITECH IT7800 series introduction

ITECH IT7800 series introduction

A quick introduction to the new ITECH IT7800 series high power AC/DC power supplies



Embedded thumbnail for ITECH IT7800 series operation

ITECH IT7800 series operation

A quick introduction to the operation of the ITECH IT7800 series high power AC/DC power supplies
